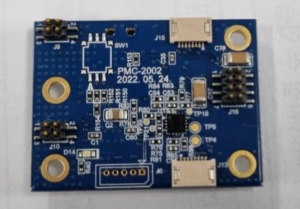

Download Catalogmulti-channel microcontroller for piezo stages, extendable with peripheral board PMC2002 to control 4 axis .

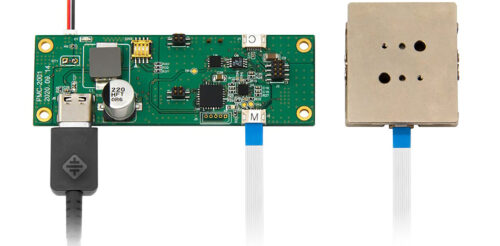

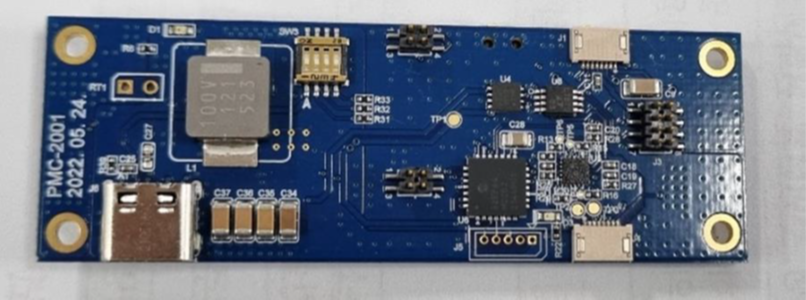

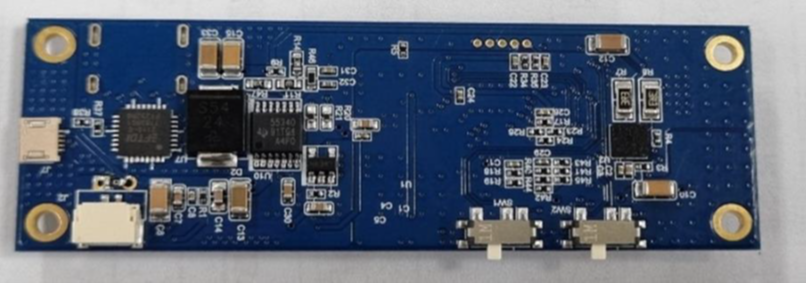

Microcontroller for Piezo Linear Stages (PZM-PMC2001)
| Model | Multi-Channel PZM-PMC2001 |
| Operating Voltage | 5V [±10%] |
| Electrical power | 1.5W |
| Power consumption | 0.3A |
| Com muni cation | USB ( Serial over USB ) |
| Baud rate | 115200 bps |
| Transmission code | ASCII |
| Data length | 8 bit |
| Stop bit length | 1 bit |
| Parity check | Nil |
| User software | PZM Controller PC Manager |
| Environmental | |
| Ambient operating temperature | 0 to +50°C |
| Storage temperature | -20°( to + 70°( |
| Operating humidity | 0 to 80% |

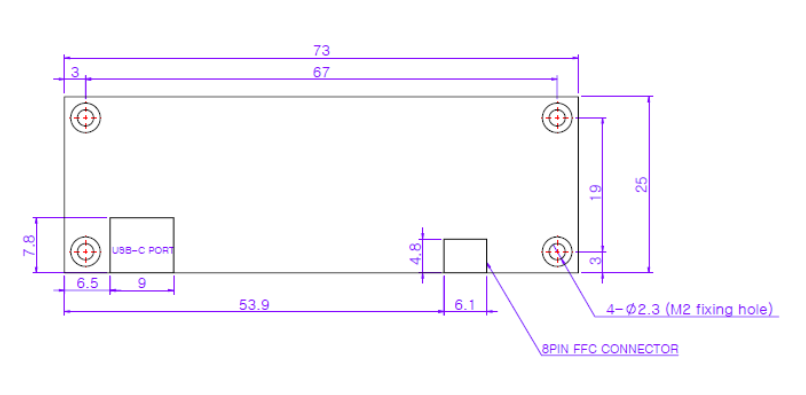

| Dimensions | 73 mm x 25 mm x 18 mm |
| Weight | 12g |
