PZM Motors
Tiny piezoelectric ultrasonic motors, configurable with standard- and customized sliders.
| Specifications | PZM25S-xxx | PZM35BS-xxx | PZM35S-xxx | PZM50M-xxx | PZM70L-xxx |
|---|---|---|---|---|---|
| Slider speed(mm/s) | <5 | <7 | <10 | <20 | <20 |
| Thrust force (g·f) | <3 | <10 | <15 | <50 | <60 |
| Thrust force (mN) | <29.42 | <98.07 | <147.10 | <490.33 | <588.40 |
| Stroke (mm) | ~3 | ~5 | ~6 | ~10 | ~15 |
| Driving voltage (V) | 10~16 | 10~18 | 12~20 | 15~30 | 20~30 |
| Driving frequency (kHz) | 120~160 | 110~150 | 80~100 | 60~80 | 35~60 |
| Current (mA) | <12 | <12 | <14 | <20 | <25 |
| Power consumption (mW) | <150 | <150 | <200 | <400 | <500 |
| Operating conditions (°C) | -20 ~ +60 | -20 ~ +60 | -20 ~ +60 | -20 ~ +60 | -20 ~ +60 |
| Storage conditions (°C) | -30 ~ +80 | -30 ~ +80 | -30 ~ +80 | -30 ~ +80 | -30 ~ +80 |
| Huminidy ({1228cc49418da1906fe02f06f9811e0b8b1708a6716820f8b8cf38c3b3dae59e}) | 15 ~ 90 | 15 ~ 90 | 15 ~ 90 | 15 ~ 90 | 15 ~ 90 |
| Datasheet |
1. Shaft length can be modifed in certain range.
2. Slider design and manufacturing available on demand. Examples see Technology.

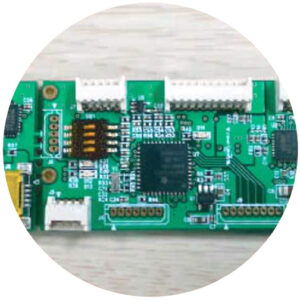

3. One-chip controller board available on demand.
Focus Modules
A compact one-chip focus module for M12 or M16 lenses, driven by piezoelectric ultrasonic linear motor, precise, quick-responsive and simple to integrate.
Connection with 5Pin flat cable, communication over UART or I²C. The 6mm stroke in Z-axis enables a wide scope of motorized solutions. Customizing available on demand.
Datasheets:
PZM-M12-06-DB.PDF
PZM-M12-06-ST.PDF
Linear Stages
This category is currently being revised.
Please contact our sales department for info on our Micro Linear Tables.
